Looks great! I'll get a 3pt soon for my 1812. I have a brinly cat0 i can use.
__________________
1971 128,3pt,ags,rebuilt motor,headlights 1988 1812,dual ports 1966 122,creeper,3pt,ags,sa,headlights,restored 1st place at RPRU 2013 1966 123,3pt,brinly spring assist 1973 108 1968 125 Attachments:QA36A,wfblade,2 nf blades,brinly disc,a cultivator,plow,homemade wrecker boom with 2000lbs winch,ih weights,50lbs weights,2IH windbreakers
|
|
#13
12-01-2011, 07:39 PM
|
|||
|
|||
|
is it possible you can give me these measurements?
i need the lower lift arm pin to the bottom toplink pin, but not straight to it, i need to know how high it is from bottom pin, and how far back it is from bottom pins, and how far the top link pins are apart and how long the the upperlift arms are from the rockshaft to the pin holes. thanks
|
|
#14
12-02-2011, 08:51 AM
|
||||
|
||||
|
Sure greasemonkey. It will be the first of the week as I am on duty til Monday morning so not much Cub time
__________________
Don Smith https://www.facebook.com/SouthernKentuckyCubCadetClub IH 982D aka "The Big Red Smoker" BRS w/3pt hitch CC 1572 aka "The Big Yellow Smoker" BYS w/3pt hitch-PTO Brinly Cat 0 3pt plow-Brinly sleeve hitch plow Custom Hydraulic lift disc-Haban Blade-Brinly Cultivators Cub Cadet lawn trailer and lawn sweeper
|
|
#15
12-04-2011, 09:54 PM
|
||||
|
||||
|
Quick Measurements
Here are few quick measurements. I got to thinking about it and I kind of owe it to the guys at Xtreme not to give away all their secrets. I want to support our sponsors and the guys building parts for us cub guys.

__________________
Don Smith https://www.facebook.com/SouthernKentuckyCubCadetClub IH 982D aka "The Big Red Smoker" BRS w/3pt hitch CC 1572 aka "The Big Yellow Smoker" BYS w/3pt hitch-PTO Brinly Cat 0 3pt plow-Brinly sleeve hitch plow Custom Hydraulic lift disc-Haban Blade-Brinly Cultivators Cub Cadet lawn trailer and lawn sweeper
|
|
#16
12-04-2011, 10:07 PM
|
||||
|
||||
|
Installation
I finally got to work on my hitch again. I read over the instructions several times and found there were many differences between the factory set up and Xtremes. A lot of pieces and steps are eliminated.First was setting up the backplate and the lift rod. This follows the factory directions
 Second is removing the clevis pin on the hydrolic lift. Again this follows the factory instructions just be aware the Xtreme includes a longer clevis to put back in. I had some difficulty cutting the cotter pin due to the lines being in the way  Third I test fitted the back plate and lift arm and re-installed the factory adjustment rod. The adjust rod will hit the lift arms if it is turned a certain way. Once I was satisfied with the fit which is very tight I removed the 2 bolts in the lower rear end housing. This process followed the factory instruction but Xtreme has the straps built into the backing plate. Make sure you have a good catch pan as fluild will shoot out of the bolt holes but with a little planning you can make the install with minimal fluid loss.
__________________
Don Smith https://www.facebook.com/SouthernKentuckyCubCadetClub IH 982D aka "The Big Red Smoker" BRS w/3pt hitch CC 1572 aka "The Big Yellow Smoker" BYS w/3pt hitch-PTO Brinly Cat 0 3pt plow-Brinly sleeve hitch plow Custom Hydraulic lift disc-Haban Blade-Brinly Cultivators Cub Cadet lawn trailer and lawn sweeper
|
|
#17
12-04-2011, 10:25 PM
|
||||
|
||||
|
Installation continued

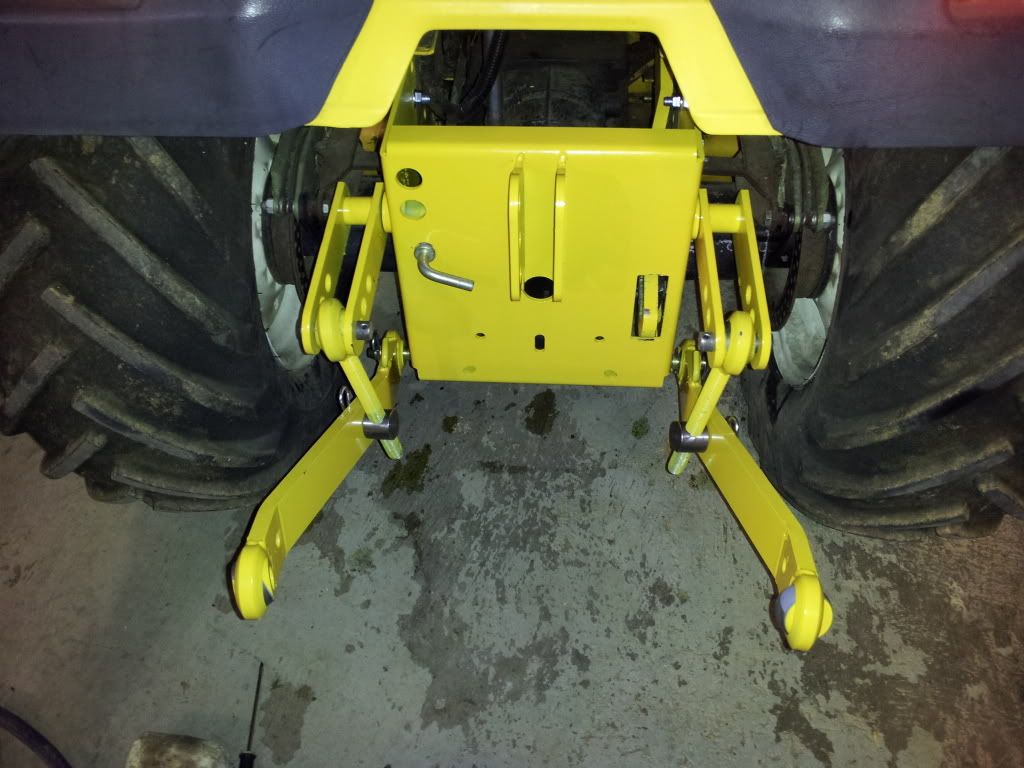

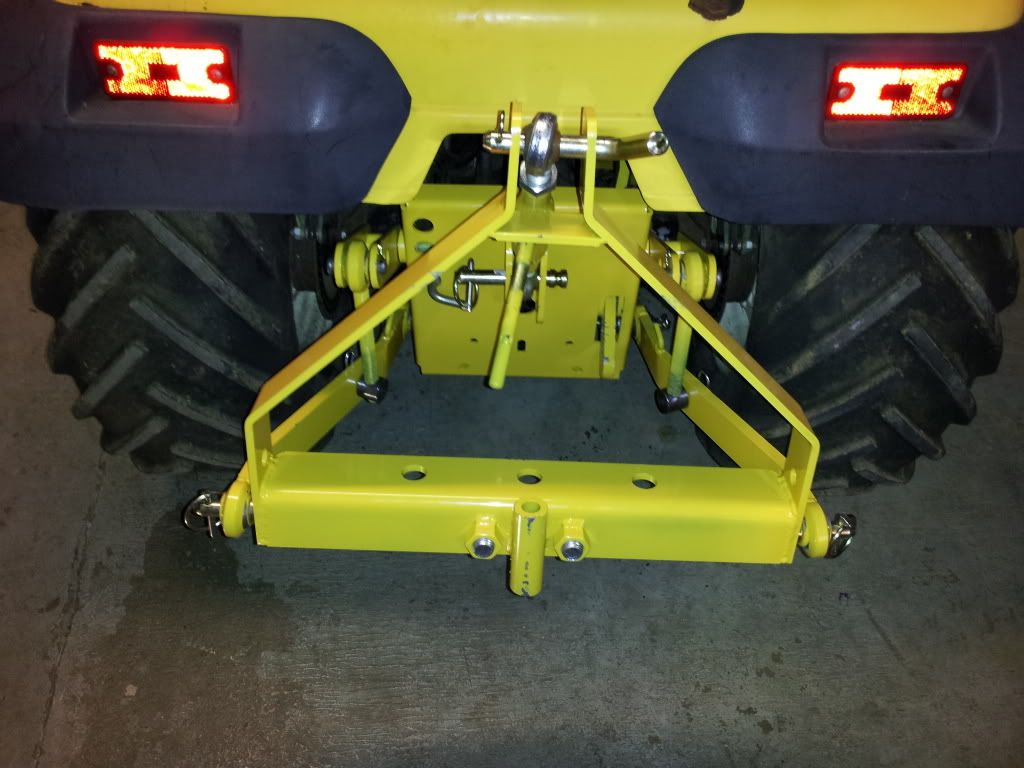

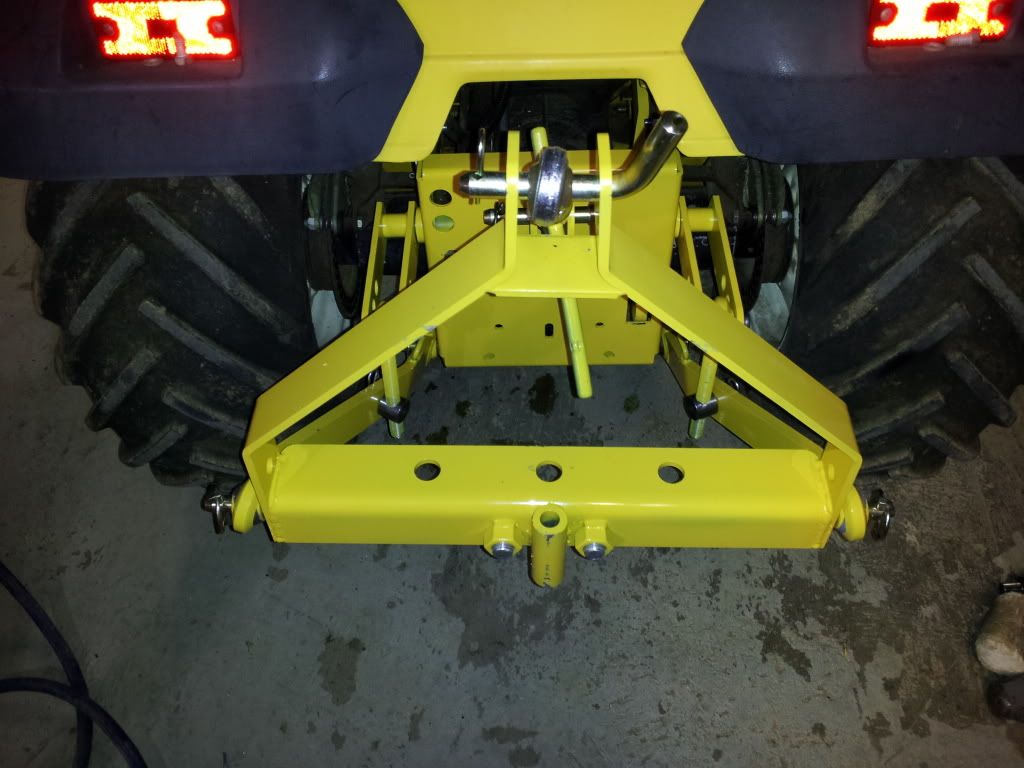

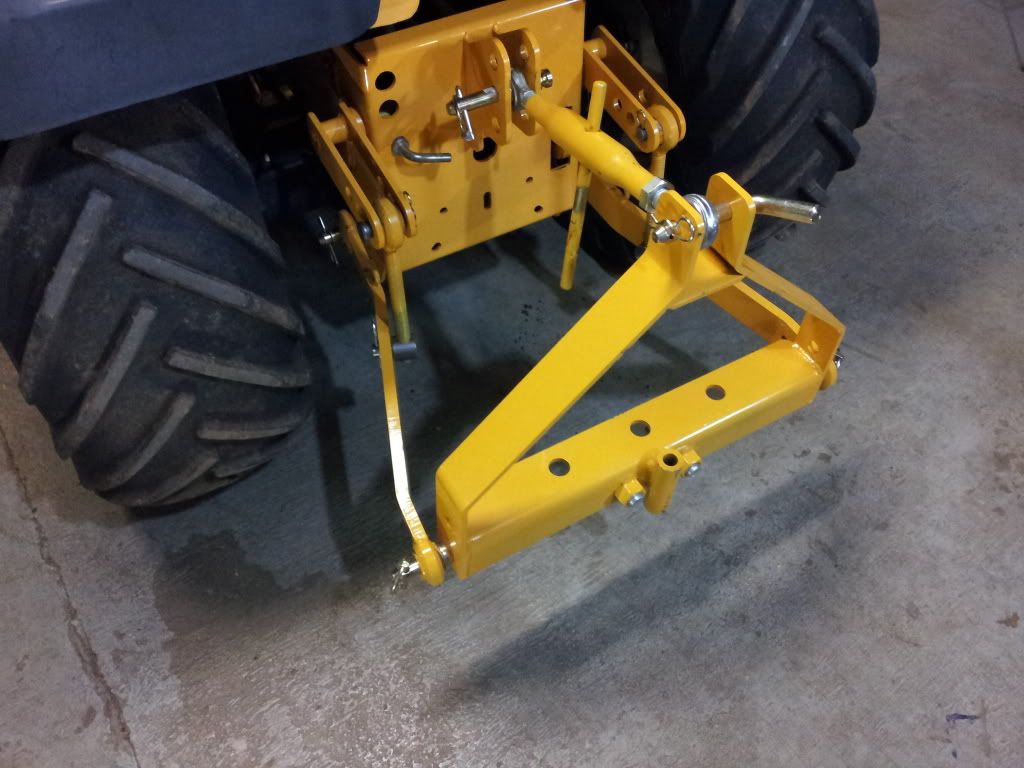

Once the back plate was mounted I began final assembly on the lift. The only thing here is if you order the multi-configuration back plate Xtreme does not tell you which holes are factory default holes. This caused me to have to try several different mounting hole set up to get the correct travel for the lift.
 Initially I had plenty of up travel but 0% down travel.  After a few adjustments I ended up with plenty of travel both up and down    As you can see in the pictures I scratched up the paint in several places. Also a note on that. The tolerances are so close I had to scrape paint and redrill some holes to get the pins to go through. The A frame top holes were slightly off probably from welding and I had to ream one side and then tap the pin through the first time.If it doesn't rain tomorrow I plan to do some testing then one final post on my experience with this install
__________________
Don Smith https://www.facebook.com/SouthernKentuckyCubCadetClub IH 982D aka "The Big Red Smoker" BRS w/3pt hitch CC 1572 aka "The Big Yellow Smoker" BYS w/3pt hitch-PTO Brinly Cat 0 3pt plow-Brinly sleeve hitch plow Custom Hydraulic lift disc-Haban Blade-Brinly Cultivators Cub Cadet lawn trailer and lawn sweeper
|
|
#18
12-04-2011, 10:34 PM
|
||||
|
||||
|
Great post there dsmithjr.
