Default Weekend Cat 0 A-Frame Project

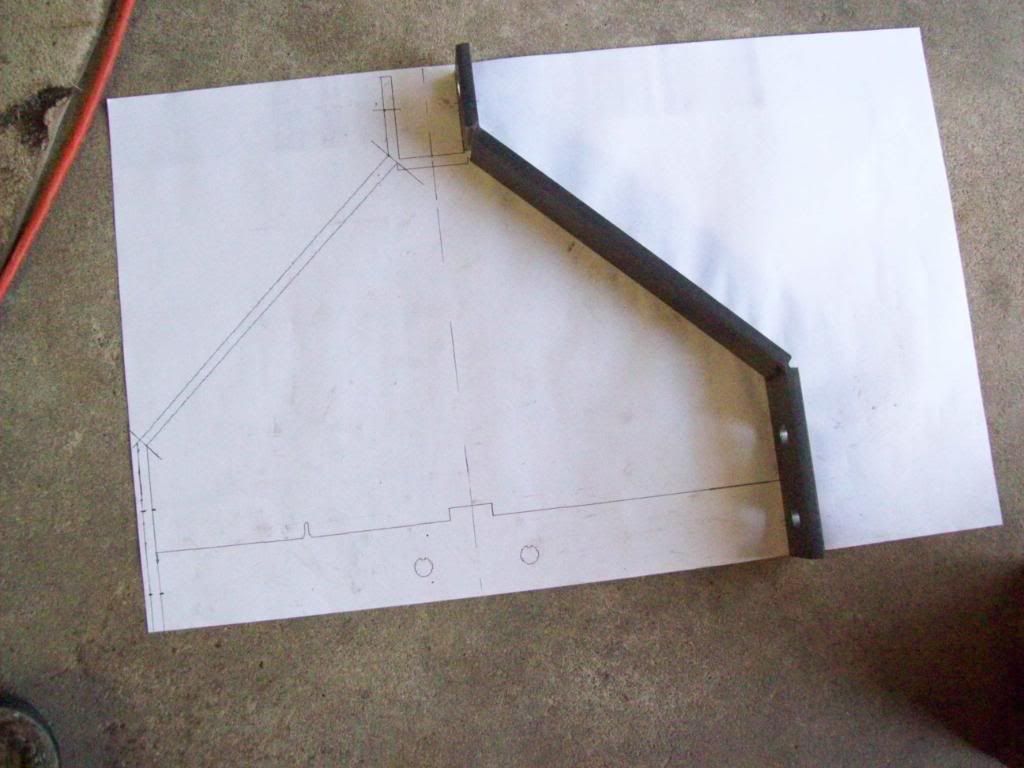

I took some time last night and today to fab up an A-Frame for the 682's Cat 0 lift. I need to get everything ready for putting the Garden in a few weeks, and have not converted any of my stuff over from sleeve hitch mounts as of yet. So I decided now would be the time to take a wack at something. I started with drawing up a pattern of what I wanted and took it from there..


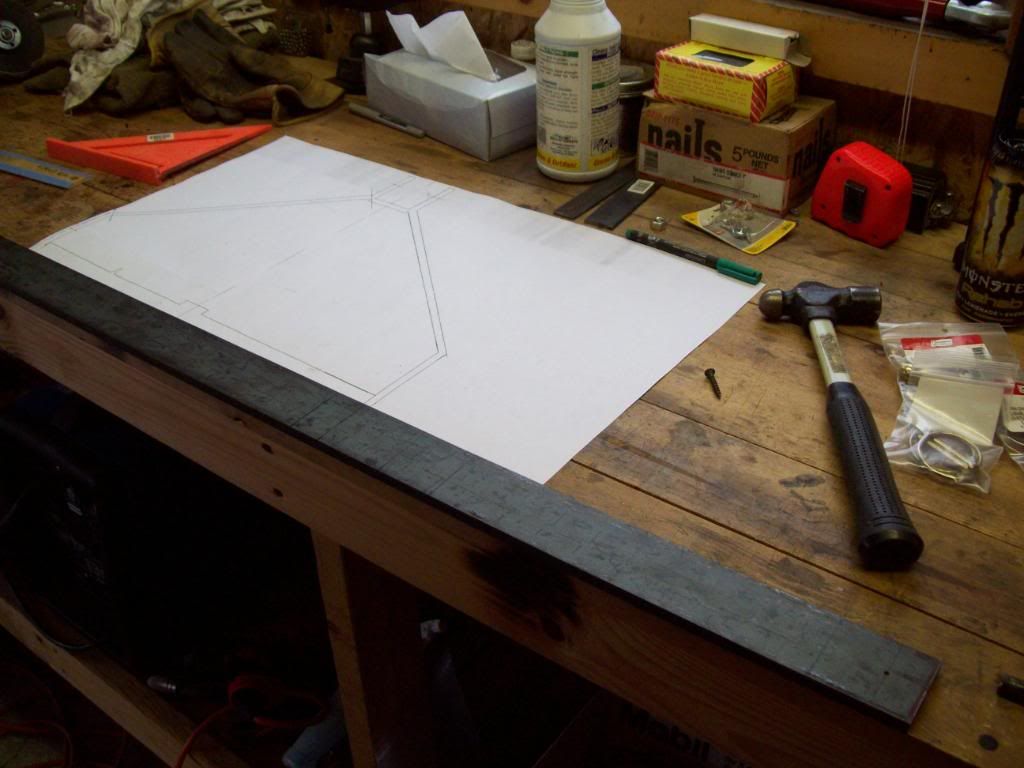

I don't have a brake press yet, so I am stuck cutting a bend groove in for now. I used 3/8" X 2" flat stock, and 1/4" X 2" angle for materials.

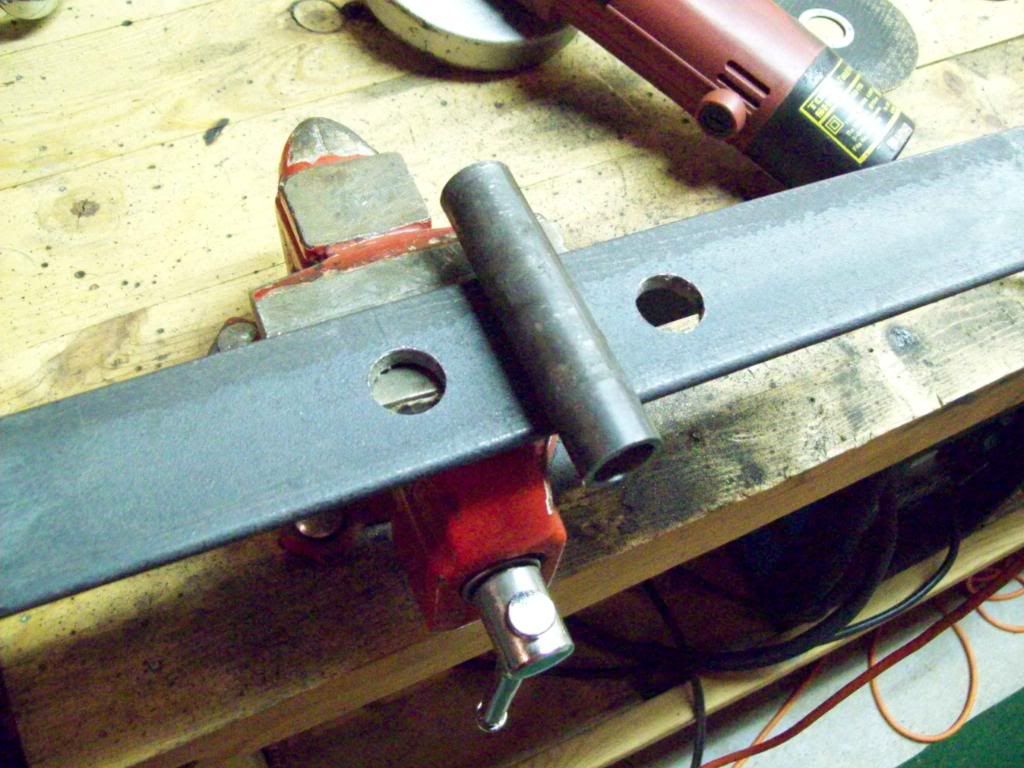

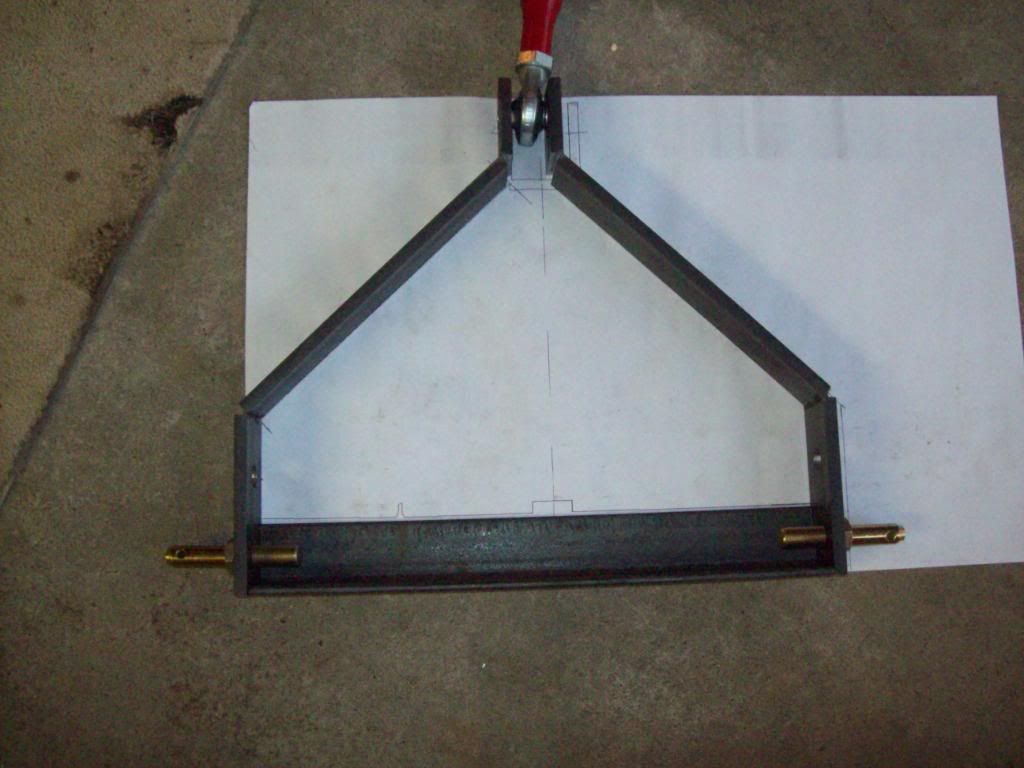

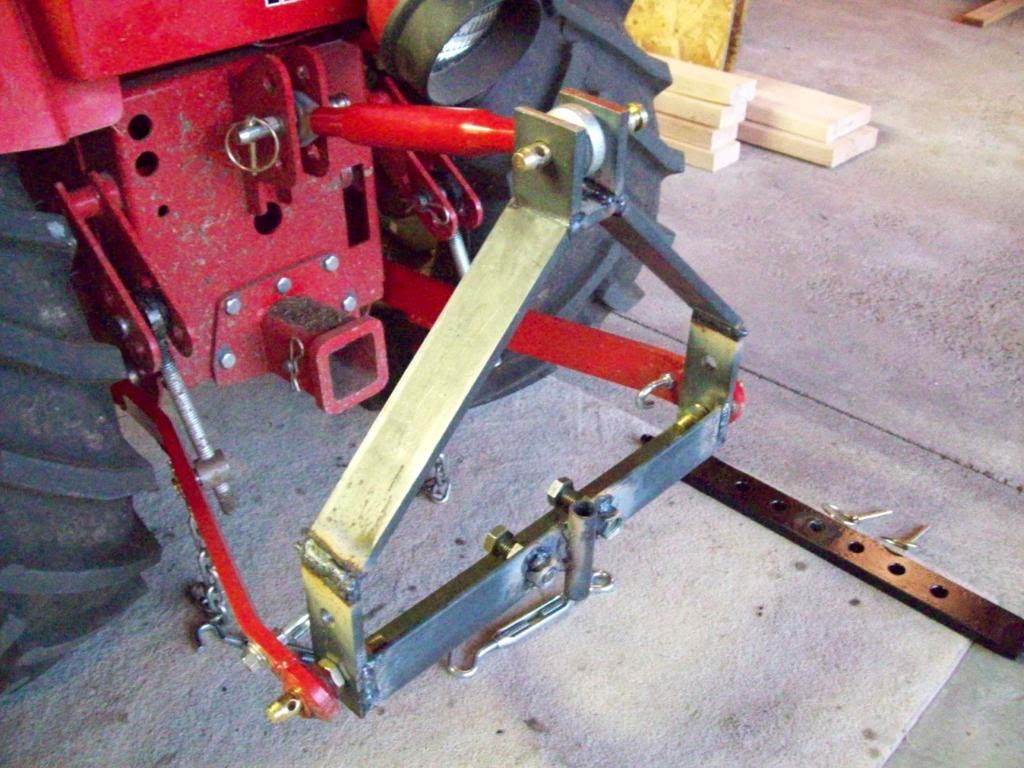

The brinly "adaptor" parts mocked up..

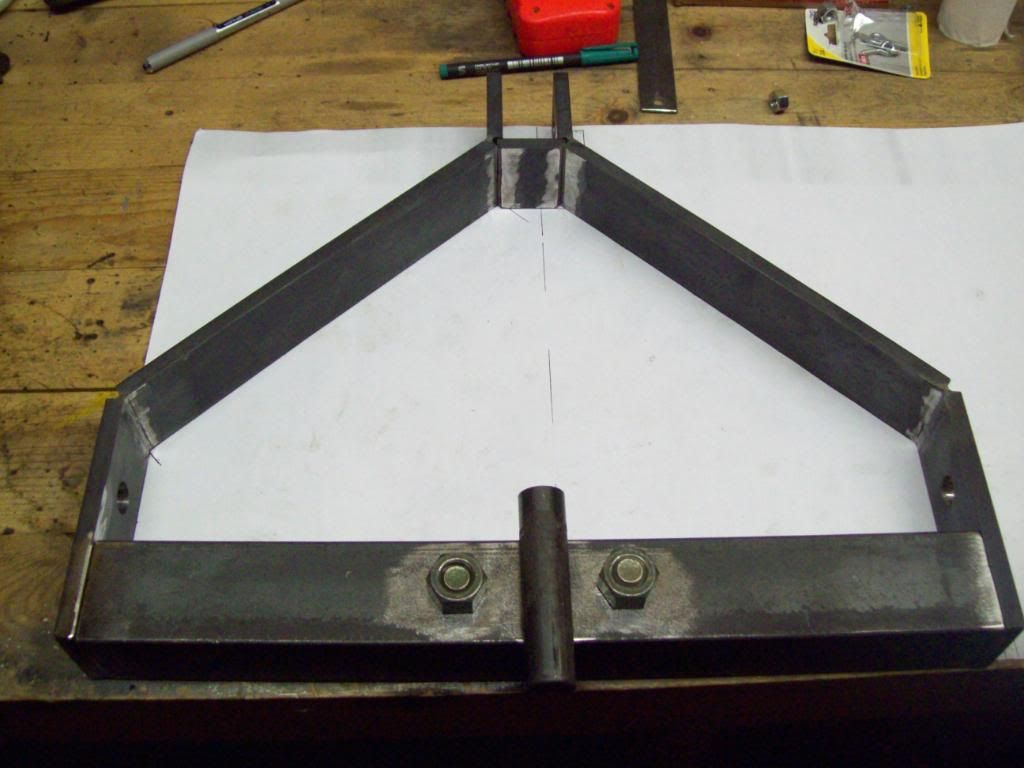

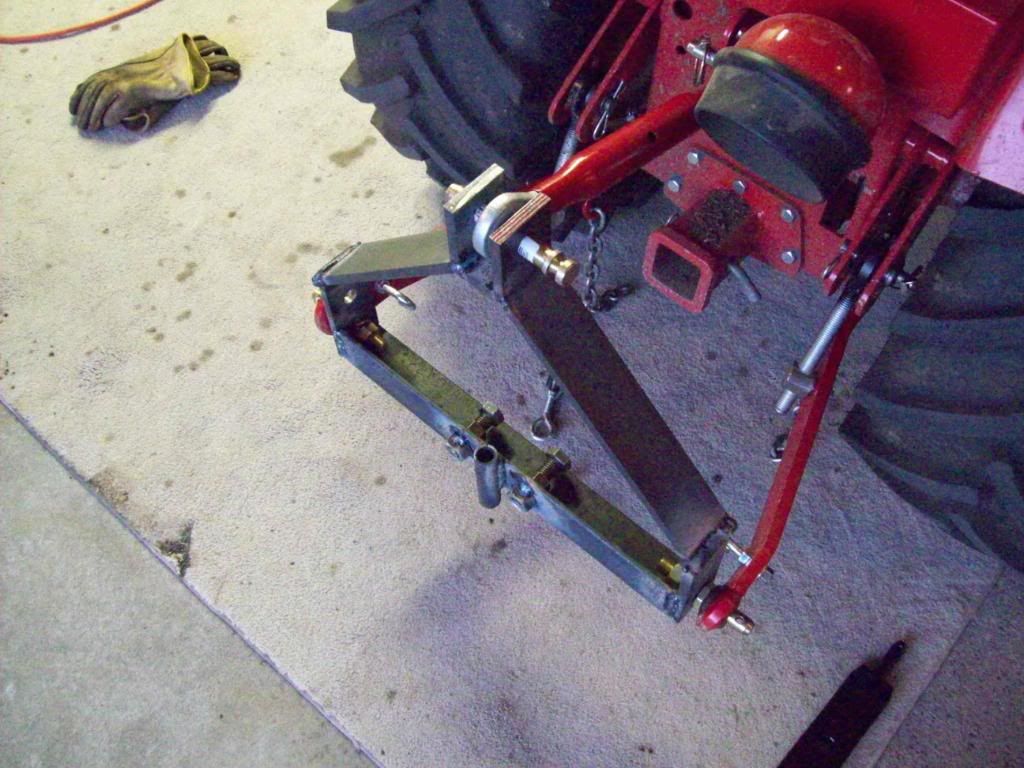

I was pondering using square stock over angle, but I can always make up another later on. This will get me by for now just fine. I'll get it all welded up tomorrow once I get back from family easter stuffs.

More to come...............
__________________
Jay N.
Eau Claire, WI
RED 82 Series...
The BEST cure for Yellow fever!
Reply With Quote
  #2
Old 04-24-2011, 12:40 AM
ACecil's Avatar
ACecil ACecil is offline
Grand Member

Join Date: Mar 2009
Location: North Carolina
Posts: 23,523
Default
Nice job, Jay! Looking forward to your updates!
__________________
Allen
Proud owner of my Original and 126!

My Grandpa's Cart
Craftsman Lawn Sweeper
Craftsman Plug Aerator
Reply With Quote
  #3
Old 04-24-2011, 02:41 AM
william1041200's Avatar
william1041200 william1041200 is offline
Senior Member

Join Date: Aug 2010
Location: MD
Posts: 1,029
Default
good looking work! I would love to see it finished!
Reply With Quote
  #4
Old 04-24-2011, 07:23 AM
Mountain Heritage's Avatar
Mountain Heritage Mountain Heritage is offline
Grand Member

Join Date: Aug 2009
Location: Ontario, Canada
Posts: 1,589
Default
Nice job Jay. Looks like it turned out pretty good so far, be nice to see that 682 put to action this Spring in the garden. Look forward to it.

__________________
Mike
Ontario, Canada
IH built 982, IH built 782, IH built 782 parts tractor, 100 w/fenders & lights, #4 trailer, 42" front blade, IH 2B tiller, 12" Brinly plow, Brinly cultivator, IH push mower, Sims cab, IH snowthrower, 450 blower.

Now everyone wants a Cub!

Beware of the Wife
Reply With Quote
  #5
Old 04-24-2011, 09:02 AM
108cubber 108cubber is offline
Member

Join Date: Feb 2010
Location: Collinsville, Oklahoma
Posts: 77
Default
Shouldn't the tube for the sleeve hitch be on the other side of the bar? Also, before welding the cuts for your angles, you might want to go a little past the angle you want. The weld will draw the angle in some. I'm not an expert by no means, just expressing some concerns.
KennyP
Reply With Quote
  #6
Old 04-25-2011, 03:28 PM
JayBrd's Avatar
JayBrd JayBrd is offline
Senior Member

Join Date: May 2009
Location: WI
Posts: 810
Default
Quote:
Originally Posted by 108cubber View Post
Shouldn't the tube for the sleeve hitch be on the other side of the bar? Also, before welding the cuts for your angles, you might want to go a little past the angle you want. The weld will draw the angle in some. I'm not an expert by no means, just expressing some concerns.
KennyP
I may change it later on when I do another one, this was just for a quick build. I welded the angles last after getting the main parts welded in..

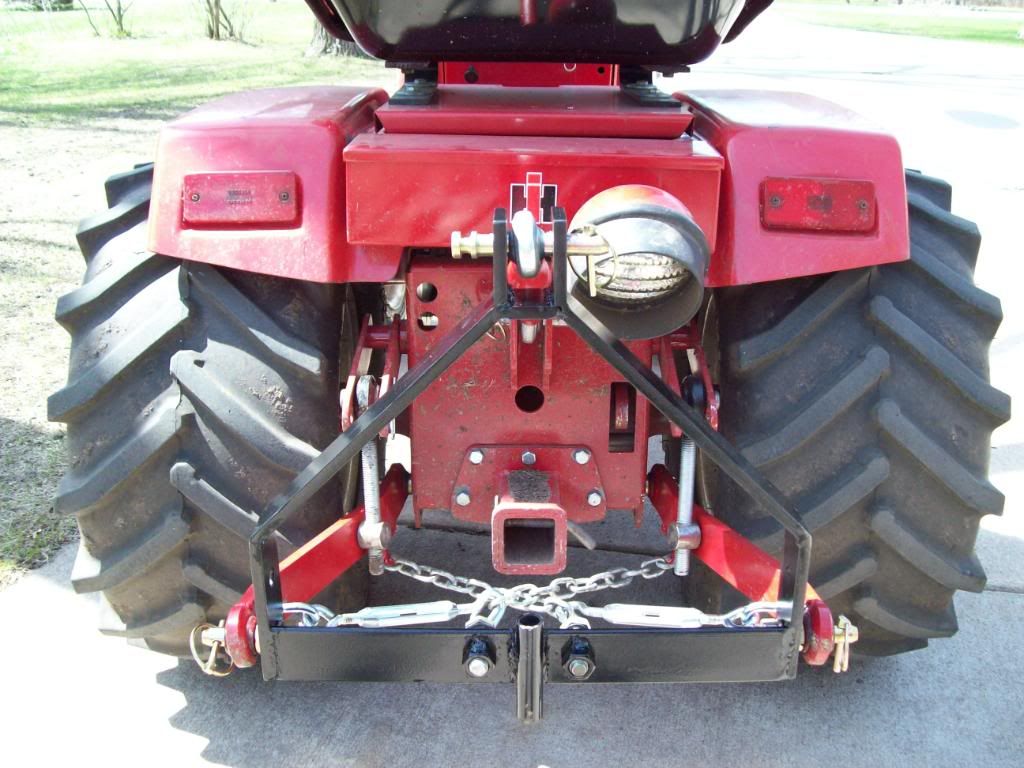

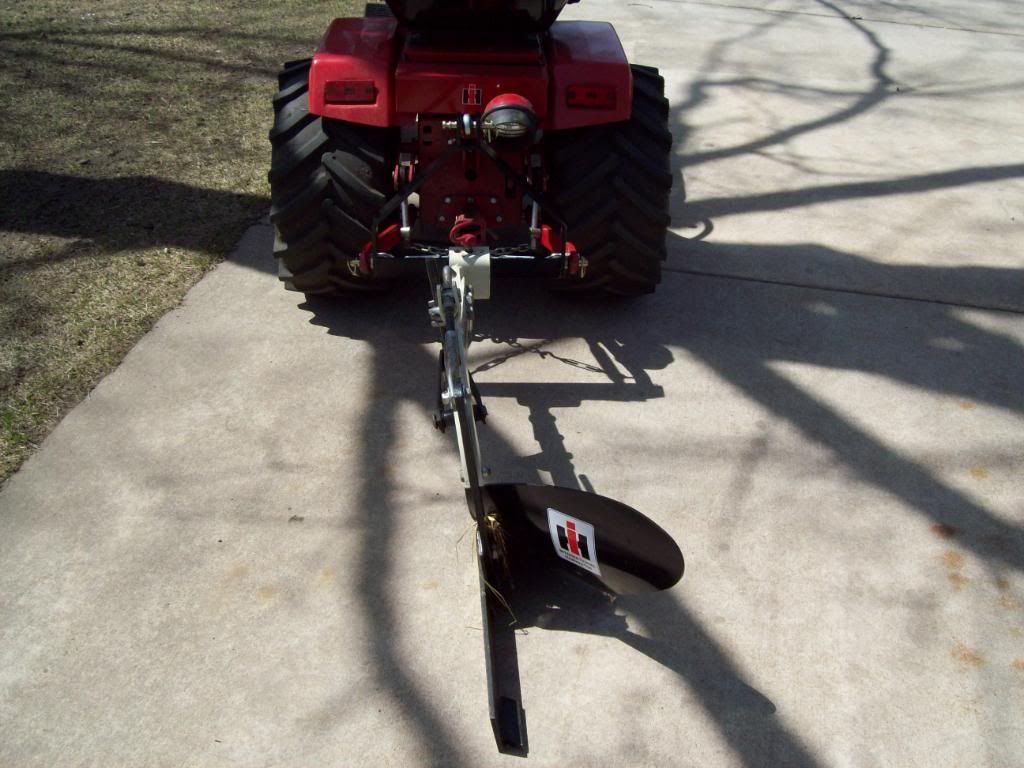

Everything welded and ready to go!!
