Default Hydraulic lift for my narrow frame 124. Rockshaft.
Electric vs hydraulic rockshaft. Are they different?

I just bought a most hard to find cub cadet hydraulic lift pump with ram assembly for my narrow frame 124. I'm going to rebuild it before use of course. What size belt does it use?

While I wait for it to arrive. I'm going to see if anyone here have a rocker shaft that they want to sell me

OR

show me pictures how can I modify my manual lift handle to work with the hydraulic lift. Also the clutch cover, how much to cut away.
Attached Images
File Type: jpg IMG_20200410_235457_016.jpg (42.3 KB, 196 views)
Reply With Quote
  #2
Old 04-11-2020, 03:57 PM
Red Dave Red Dave is offline
Senior Member

Join Date: Aug 2019
Location: PA
Posts: 181
Default
I put a hydraulic lift on my 125 last summer (2019) after I found one at the flea market at Red Power Roundup.

You use the same lift rockshaft as the manual lift, except that the handle is cut off where it comes out of the lift mechanism.

I took some pictures of installed hydraulic lifts at Red Power to use as guidance and I also have a copy of the Hydraulic Lift Installation Manual that I could email to you, if you would be interested. No charge of course, but I would point out that the manual didn't answer all my questions, some things I had to figure out on my own, but it did help some.

Mine is on and working, so I could take some pics of specific things if you need me to. Internal parts for these things are scarce.

I bought a new belt for mine, but I do not recall the number. If you can give me a day or two, I can walk out to the shed and see if the belt number is legible on mine. You will have to move the engine to get the belt on.

EDIT: OK, It's a slow day so I went out and checked on that belt.

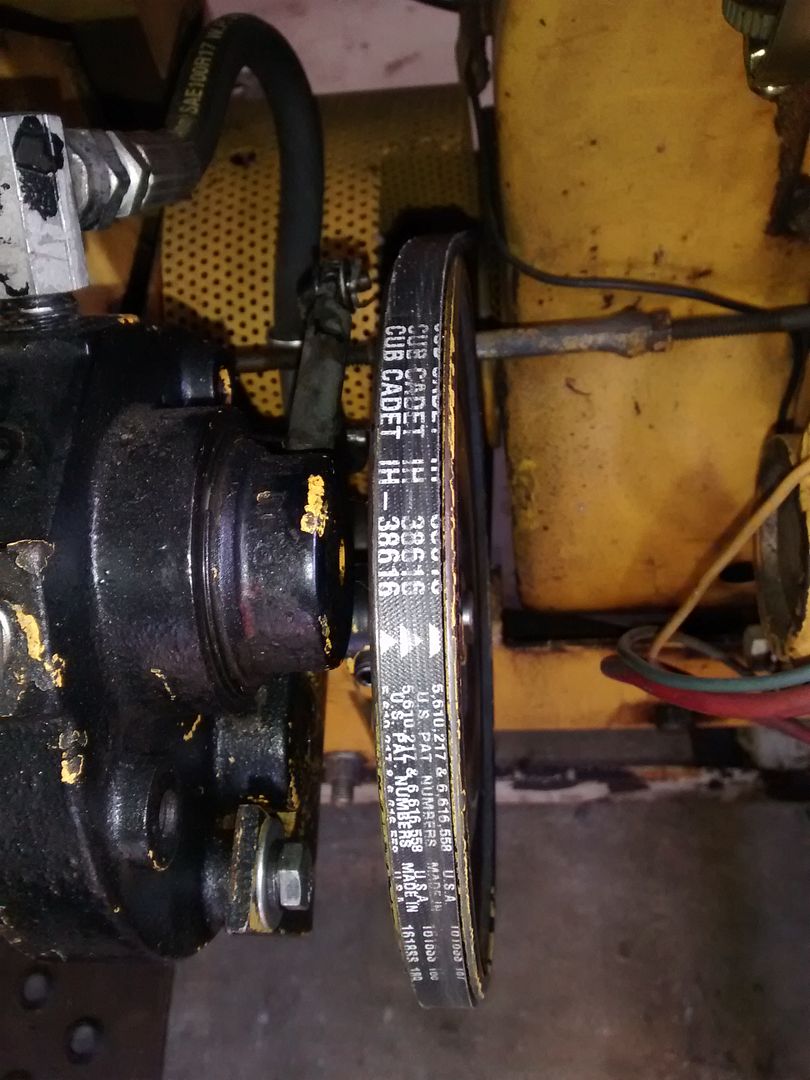

IH 38616 I got it at the local Cub Cadet Dealer. Same dealer also made new hoses for me.
Reply With Quote
  #3
Old 04-11-2020, 05:10 PM
Rwgarrison23's Avatar
Rwgarrison23 Rwgarrison23 is offline
Senior Member

Join Date: Aug 2019
Location: VA
Posts: 147
Default
Quote:
Originally Posted by Red Dave View Post
I put a hydraulic lift on my 125 last summer (2019) after I found one at the flea market at Red Power Roundup.

You use the same lift rockshaft as the manual lift, except that the handle is cut off where it comes out of the lift mechanism.

I took some pictures of installed hydraulic lifts at Red Power to use as guidance and I also have a copy of the Hydraulic Lift Installation Manual that I could email to you, if you would be interested. No charge of course, but I would point out that the manual didn't answer all my questions, some things I had to figure out on my own, but it did help some.

Mine is on and working, so I could take some pics of specific things if you need me to. Internal parts for these things are scarce.

I bought a new belt for mine, but I do not recall the number. If you can give me a day or two, I can walk out to the shed and see if the belt number is legible on mine. You will have to move the engine to get the belt on.

EDIT: OK, It's a slow day so I went out and checked on that belt.

IH 38616 I got it at the local Cub Cadet Dealer. Same dealer also made new hoses for me.
My email is Rwgarrison2323@gmail.com.

I bought the complete pump and ram assembly with pump brackets and hose. I think it does t come with the needed bracket to be put on the rock shaft. That what I need to see what all needed to make my manual lift rock shaft to work along still be able to use my snow plow up front.
Reply With Quote
  #4
Old 04-11-2020, 05:39 PM
Rwgarrison23's Avatar
Rwgarrison23 Rwgarrison23 is offline
Senior Member

Join Date: Aug 2019
Location: VA
Posts: 147
Default
This is what I was talking about. The lift arm to be able to use onto the manual lift rockshaft assembly is what I dont have.
Attached Images
File Type: jpg Screenshot_20200411-163729_Drive.jpg (15.3 KB, 188 views)
Reply With Quote
  #5
Old 04-11-2020, 07:19 PM
ironman's Avatar
ironman ironman is offline
Grand Member

Join Date: Sep 2012
Location: Pennsylvania
Posts: 2,608
Default
It is part no. IH-20240-R1 if that helps you any..
Attached Images
File Type: jpg lift arm.jpg (14.0 KB, 183 views)
File Type: jpg lift arm2.jpg (25.4 KB, 181 views)
Reply With Quote
  #6
Old 04-11-2020, 08:32 PM
Rwgarrison23's Avatar
Rwgarrison23 Rwgarrison23 is offline
Senior Member

Join Date: Aug 2019
Location: VA
Posts: 147
Default
So, I went out to my spare parts cub. It has a manual lift rock shaft I took out a while back. I got to looking at it and it seem that I need to cut where my finger is pointing at.
Attached Images
File Type: jpg 20200411_192439.jpg (21.6 KB, 178 views)
File Type: jpg 20200411_192455.jpg (18.4 KB, 176 views)
File Type: jpg 20200411_192523.jpg (24.1 KB, 176 views)
Reply With Quote
  #7
Old 04-11-2020, 09:08 PM
Jeff in Pa's Avatar
Jeff in Pa Jeff in Pa is offline
Site Sponsor

Join Date: Feb 2012
Location: Zionsville, PA
Posts: 3,171
Default
If I get the chance tomorrow, I will get pictures of both my 125's. One is manual lift and the other has hydraulic lift.

Jeff
Reply With Quote
  #8
Old 04-11-2020, 09:15 PM
Rwgarrison23's Avatar
Rwgarrison23 Rwgarrison23 is offline
Senior Member

Join Date: Aug 2019
Location: VA
Posts: 147
Default
Quote:
Originally Posted by Jeff in Pa View Post
If I get the chance tomorrow, I will get pictures of both my 125's. One is manual lift and the other has hydraulic lift.

Jeff
Thank you!
Reply With Quote
  #9
Old 04-11-2020, 11:17 PM
Cub Cadet 123's Avatar
Cub Cadet 123 Cub Cadet 123 is offline
Grand Member

Join Date: Jun 2009
Location: Ohio
Posts: 4,528
Default
The rockshafts are different for a hydraulic lift and an electric lift. The electric lift is 3/4" further out (away from the frame of the cub) than the hydraulic lift. You can use an electric lift rockshaft if you use spacers.
