Default What is this?

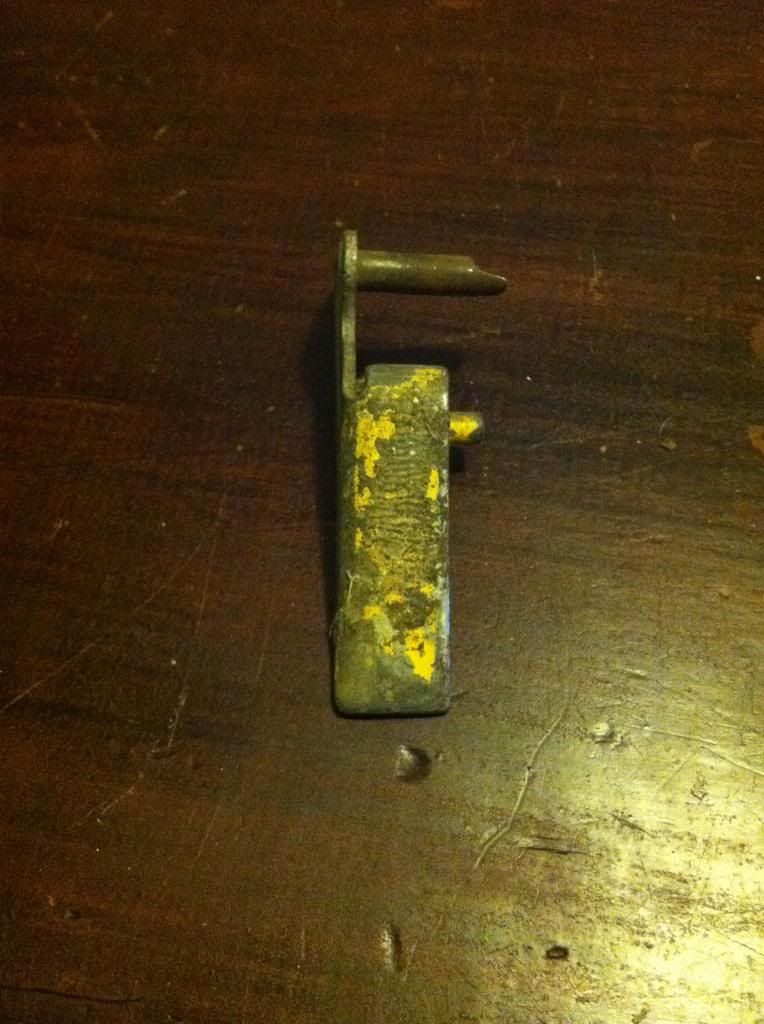

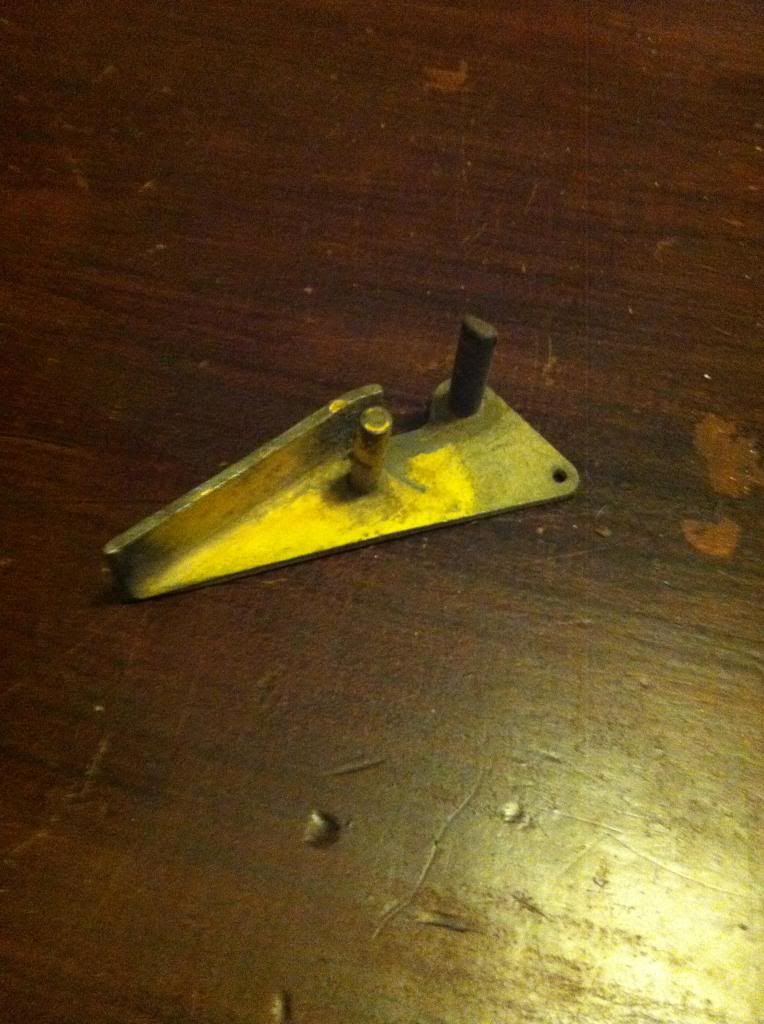

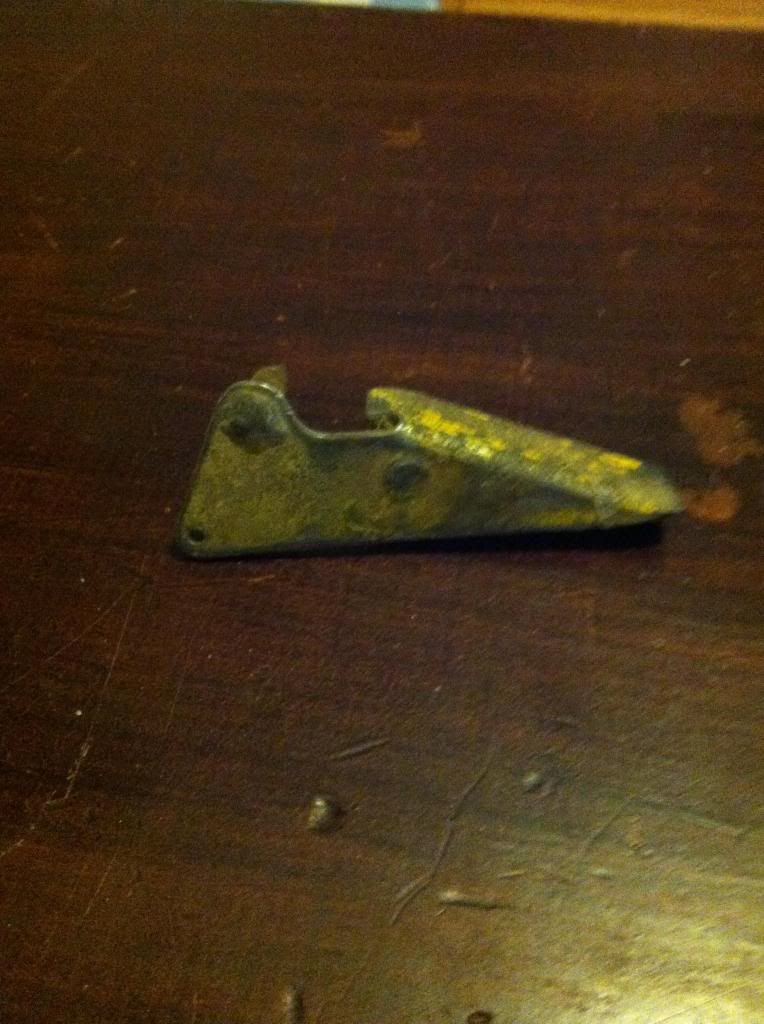

This came with my 122 but I have no clue what it is and where it goes.





Reply With Quote
  #2
Old 12-16-2013, 01:46 AM
macman81's Avatar
macman81 macman81 is offline
Senior Member

Join Date: Mar 2011
Location: WI
Posts: 265
Default
well i can't tell you what it is but I'm pretty sure its not an IH cub cadet part. none i've ever seen at least.
__________________
John,

PROUD OWNER
Cub Cadet 122, 149, 1650 dual hyd and COZY CAB, 782 dual hyd, 54" power angle blade, qa42a snow thrower, #1 tiller w/extensions, brinly plow,
1940 farmall H, Little Wonder 2 bottom plow, 1954 IH Fridge, 1948 IH 158 chest freezer.
Reply With Quote
  #3
Old 12-16-2013, 03:34 AM
cubby102's Avatar
cubby102 cubby102 is offline
Grand Member

Join Date: Mar 2012
Location: Kewanee, Illinois
Posts: 1,976
Default
I've hand every nut and bolt of a 122 out and this doesn't look familiar at all. Maybe something a PO made.
__________________
No more cubs. But never fear there will be more
Reply With Quote
  #4
Old 12-16-2013, 09:06 AM
finsruskw finsruskw is offline
Grand Member

Join Date: Mar 2013
Location: Iowa
Posts: 3,288
Default
What ever it is, by the looks of the pin it's pretty well worn out!
Reply With Quote
  #5
Old 12-16-2013, 11:54 AM
J-Mech J-Mech is offline
Banned

Join Date: Apr 2013
Location: Oblong, Illinois
Posts: 17,594
Default
..... looks broken whatever it is.

I'm pretty sure that isn't a cub part. I've never seen that.
Reply With Quote
  #6
Old 12-16-2013, 12:06 PM
ACecil's Avatar
ACecil ACecil is offline
Grand Member

Join Date: Mar 2009
Location: North Carolina
Posts: 23,523
Default
Quote:
Originally Posted by J-Mech View Post
..... looks broken whatever it is.

I'm pretty sure that isn't a cub part. I've never seen that.
Me either. Could be homemade.
__________________
Allen
Proud owner of my Original and 126!

My Grandpa's Cart
Craftsman Lawn Sweeper
Craftsman Plug Aerator
Reply With Quote
  #7
Old 12-16-2013, 01:00 PM
DoubleO7's Avatar
DoubleO7 DoubleO7 is offline
Grand Member

Join Date: Nov 2013
Location: Crystal River, FL
Posts: 1,477
Default
That is a toggle switch safety cover from the formerly top secret CC122 guided missile interceptor project.
The DOD wanted a portable, inconspicuous, suburbanite friendly unit that could also mow grass while on weekly patrol in subdivisions.
Reply With Quote
  #8
Old 12-16-2013, 01:35 PM
kostendorf's Avatar
kostendorf kostendorf is offline
Senior Member

Join Date: Jun 2013
Location: Troy Missouri
Posts: 557
Default
Quote:
Originally Posted by DoubleO7 View Post
That is a toggle switch safety cover from the formerly top secret CC122 guided missile interceptor project.
The DOD wanted a portable, inconspicuous, suburbanite friendly unit that could also mow grass while on weekly patrol in subdivisions.
The small hole is for the safety wire to keep the bikini clad girl from accidentally shooting the missile.
__________________
1977 1650 with cast iron lower grill housing, cast iron oil pan, 54" push-snow blade, rear blade, disc-harrow, 44c and 48" decks, Two cultivators, #1 tiller with both extensions, loaded tires, 75' weights and chains, #2 cart.
Reply With Quote
  #9
Old 12-16-2013, 01:45 PM
kostendorf's Avatar
kostendorf kostendorf is offline
Senior Member

Join Date: Jun 2013
Location: Troy Missouri
Posts: 557
Default
What it actually is ---- A brake pedal lock to lock brake pedal down. I have one on my 460 farmall. When you press brake pedal down you lift up on a rod to catch this piece on the brake pedal arm to lock the brakes. When you step on the brake again this piece lets go by way of a spring that is connected to the small hole.
__________________
1977 1650 with cast iron lower grill housing, cast iron oil pan, 54" push-snow blade, rear blade, disc-harrow, 44c and 48" decks, Two cultivators, #1 tiller with both extensions, loaded tires, 75' weights and chains, #2 cart.
Reply With Quote
  #10
Old 12-16-2013, 02:12 PM
kostendorf's Avatar
kostendorf kostendorf is offline
Senior Member

Join Date: Jun 2013
Location: Troy Missouri
Posts: 557
Default
I couldn't find a pic of everything put together and I don't want to walk all the way out to the shed in the snow to take a pic., but I do have a pic. of the brake pedal that it works on.
